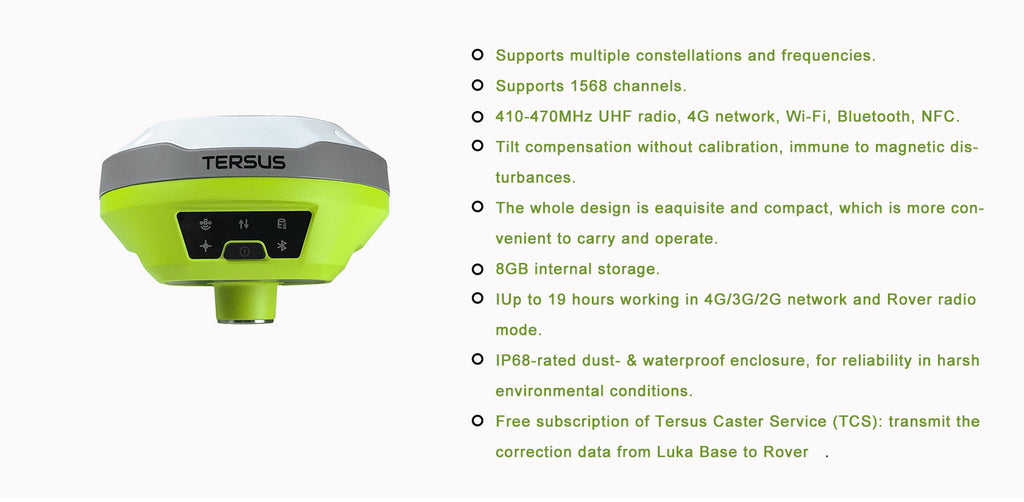

Luka GNSS Receiver
Regular price
$8,000.00 USD
Sale price
$8,000.00 USD
Regular price
Unit price
Luka GNSS Receiver
Regular price
$8,000.00 USD
Sale price
$8,000.00 USD
Regular price
Unit price
Product description
Specification
Performance |
Performance - continued |
|||
| Signal Tracking: | GPS L1/L2/L5; | Tilt compensation accuracy (No tilt angle limit)： | ≦2cm(within 60°)（3） | |
| BeiDou Bll/B2l/B3l/BlC/B2a; GLONASS L1/L2; | ||||
| Galileo El/E5a/E5b; | Timing Accuracy (RMS)： | 20ns | ||
| QZSS L1/L2/L5 | Velocity Accuracy (RMS)： | 0.03m/s | ||
| Channels: | 1568 | Software Support | ||
| Single Point Positioning Accuracy (RMS): | Tersus Nuwa | |||
| -Horizontal： | 1.5m | System & Data | ||
| -Vertica： | 2.5m | Operating System： | Linux | |
| DGPS Positioning Accuracy (RMS): | Storage： | Built-in 8GB | ||
| -Horizontal： | 0.25m | Differental Data Format： | CMR, RTCM2.X, RTCM 3.x | |
| -Vertica： | 0.5m | Data Output： | RINEX,NMEA-0183, Tersus Binary | |
| High-Precision Static (RMS): | Data Update Rate： | 20Hz | ||
| -Horizontal： | 2.5mm+0.1ppm | Communication | ||
| -Vertica： | 3.5mm+0.4ppm | Cellular: | 4G LTE/WCDMA/GSM/EDG | |
| Static & Fast Static (RMS): | Cellular Bands: | LTE FDD B1,B3,B7,B8,B20, B28A | ||
| -Horizontal： | 2.5mm+0.5ppm | LTETDDB38,B40,B41 WCDMAB1,B8 GSM/EDGE B3,B8 |
||
| -Vertica： | 5mm+0.5ppm | Network Protocols： | Ntrip Client, Ntrip Server, | |
| Post Processed Kinematic (RMS): | TCP, Tersus Caster Service (TCS) | |||
| -Horizontal： | 8mm+lppm | Wi-Fi： | 802.11b/g/n | |
| -Vertica： | 15mm+lppm | Bluetooth： | 4.1 | |
| Real Time Kinematic (RMS): | Internal Radio(3) | |||
| -Horizontal： | 8mm+lppm | RF Transmit Power： | 0.5W/1.0W | |
| -Vertica： | 15mm+lppm | Frequency Range： | 410MHz 〜470MHz | |
| Initialization (Typical)： | 4s⑴ | Operating Mode： | Half-duplex | |
| Initialization Reliability： | >99.9%（2） | Channel Spacing: | 12.5KHz/25KHz | |
| Network Real Time Kinematic (RMS): | Air Baud Rate： | 4800/9600/19200bps | ||
| -Horizontal： | 8mm+0.5ppm | Modulation Type： | GMSK,4FSK | |
| -Vertica： | 15mm+0.5ppm | Radio Protocols： | Transparent, TrimTalk450, TrimMark3, South,Satel | |
| Observation Accuracy (zenith direction): | Wired Communication | |||
| -C/A Code: | 10cm | USB： | Type-C, OTG | |
| -PCode： | 10cm |
User Interface |
||
| -Carrier Phase： | 1mm | Button： | Power Button | |
| Time To First Fix (TTFF): | LED Indicators: | Satellite, Correction data, Static, | ||
| -Cold Start： | <30s | Solution, Bluetooth | ||
| -Warm Start： | <5s | Voice： | Support in Nuwa App | |
| Re-acquisition： | <ls | Power Display: | Support | |
| Electrical | ||||
| Note: (1) The initialization time depends on various factors, including the number of satellites, observation time, atmospheric conditions, multi-path, obstructions, satellite geometry, etc. (2) The initialization reliability may be affected by atmospheric conditions, signal multipath, and satellite geometry. (3) IMU and built-in radio are optional, details refer to performance comparison table. (4) The working time of the battery is related to the working environment, working temperature and battery life. Up to 19 hours working in 4G/3G/2G network and Rover radio mode. (5) The actual size/weight may vary depending on the manufacturing process and measurement method. |
External Power Supply： | Support USB (5〜20V) | ||
| Fast Charging： | Support, 15W max(5V 3A) | |||
| Battery： | Built-in, 7000mAh/7.4V | |||
| Charing Time： | 3 hours (20%〜90%) | |||
| Battery Charging Temperature： | ·+10°C〜+45°C | |||
| Working Time： | Up to 19 hours⑷ | |||
| Physical | ||||
| Dimension： | φ 132x68mm | |||
| Weight： | ≦827g（5） | |||
| Operating Temperature： | -40oC 〜+70oC | |||
| Storage Temperature： | -550C 〜+850C | |||
| Relative Humidity： | 100% not condensed | |||
| Dust-& Waterproof： | IP68 | |||
| Pole Drop onto Concrete： | 2m | |||
| Vibration： | MIL-STD-810G, FIG514.6C-1 | |||
