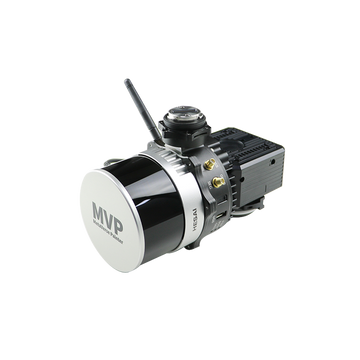

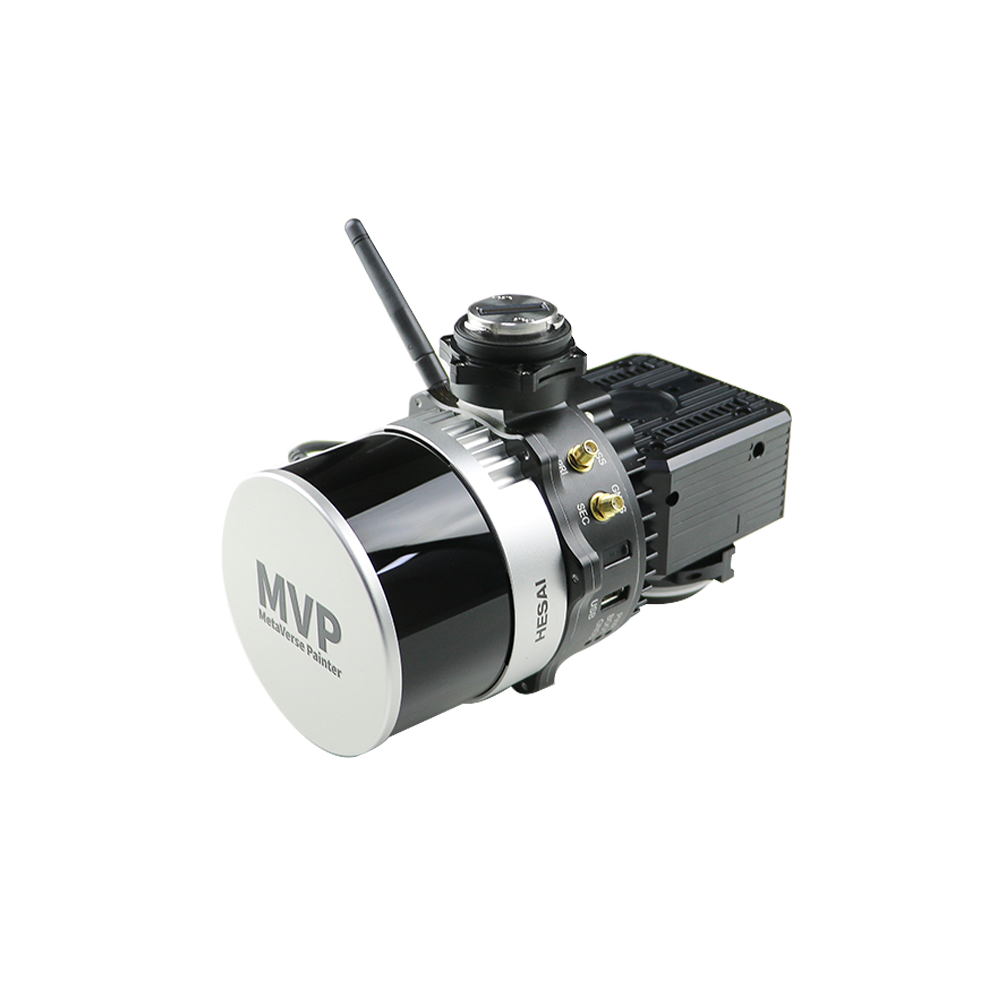

MVP TX32/M2X

Name: MVP TX32/M2X
Brand: Tersus GNSS Online Store
SKU: 100
Price: 40000.0 USD
Availability: InStock

$40,000.00 USD

Oferta Agotado

Style MVP TX32(Coloring camera) MVP TX32M2X(Coloring camera) L1 SLAM(360 camera not included)

Variantes de producto

Cantidad

System Platform
Weight	1.17kg (without camera)
	1.70kg (with camera)
Power Supply / Voltage	DC 9 ~ 36 V
Power Consumption³⁾	17 W without camera, 24W with SONY camera
Operating Temperature	-10℃ ~ +40℃
Storage Temperature	-40℃ ~ +85℃
Data Storage	256GB USB, up to 1TB
Scanner Performance (based on Hesai Pandar XT32)
Laser Class	Class 1 Eye Safe
Wavelength	905 nm
Operating Principle	TOF¹⁾
Measurement Range	0.05 to 120 m
Field of View (Horizontal)	360°
Horizontal Resolution	0.09°（5Hz）
	0.18°（10Hz）
	0.36°（20Hz）
Field of View (Vertical)	31°(-16°~ +15°)
Vertical Resolution	1°
Frame Rate	5 Hz, 10 Hz, 20 Hz
Returns supported	Single Return (Last, Strongest, First)
	Dual Returns
Max. Effective Measurement Rate	640,000 pts/ sec (single return) 1,280,000 pts/ sec (dual returns)
LiDAR Accuracy/ Precision	10 mm / 5mm
Point Cloud Precision	3-5cm (dependent on LiDAR, taken on the same target @ 50 m AGL)
Note: 1) Distance measurement: Time of Flight (TOF), distance to the object can be measured by calculating the time between laser emission and receipt.
GNSS / IMU Performance
Positioning Accuracy (RMS)	0.5cm+1ppm (PPK)
	1cm+1ppm (RTK)
GNSS data rate	Up to 100Hz
IMU data rate	Up to 2000Hz
Roll & Pitch Accuracy	＜0.01°Pitch & Roll
Heading Accuracy	＜0.05°Heading
Optional Accessories
Camera	RGB Camera
	Thermal Camera
DJI Skyport Adapter
Vibration Isolator
Antenna Mounts	Aerial Mount for drone
	Vehicle Mount (Single/Dual ANT)
