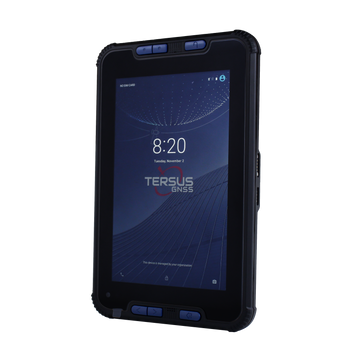

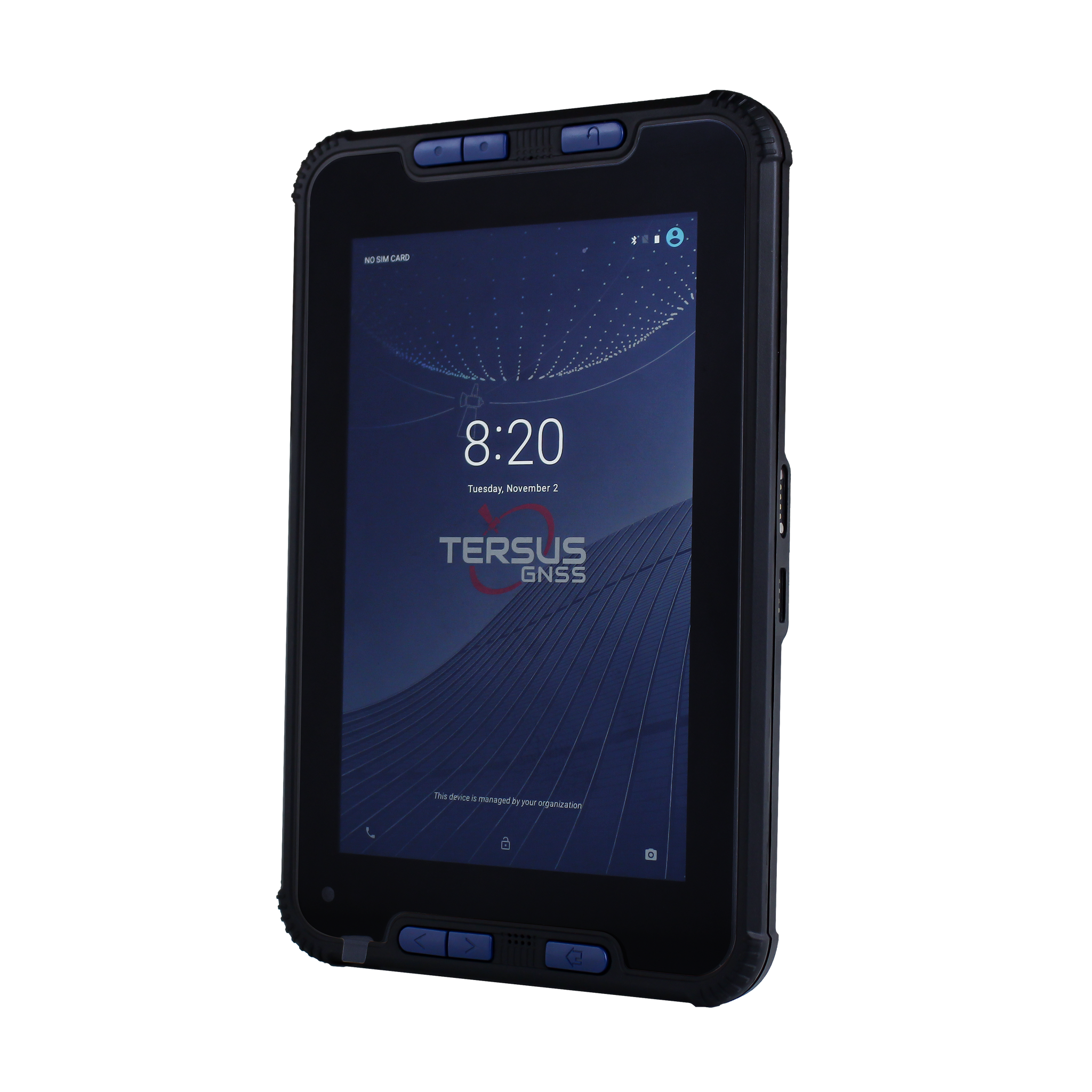

Controller & Tablet -- TC40

Harga reguler $2,000.00 USD
Harga jual $2,000.00 USD Harga reguler
Harga satuan
Membandingkan Ajukan pertanyaan

Ajukan Pertanyaan

* Ruas yang wajib diisi

Panduan ukuran Bagi
Controller & Tablet -- TC40

Controller & Tablet -- TC40

Harga reguler $2,000.00 USD
Harga jual $2,000.00 USD Harga reguler
Harga satuan
Product description
Specification


System



Electrical


Operating System: Android 8.1 Battery: 9000mAh
CPU: 8-core 2.0GHz Working Time(Typical): ≥10hours(1)
Memory: 4GB RAM+64 ROM Charging Ways: USBTYPE-CFastCharge5V/9V1.5A
External Storage: Micro SD*1, up to 128G

Physical


Display:                                                                   8'' IPS screen Dimension: 235*150*17.6mm(2)
Touch Screen:                          5-point Capacitive Touch Screen Weight: 700g(IncludingBattery)(2)
Keypad :                               6 Physical Buttons, 1 Power Button Operating Temperature: -20℃~+55℃
Earphone: 3.5mm Earphone Jack Storage Temperature: -30℃~+70℃
Resolution: 1280*800 Humidity: 5%~95%
Notification Method:                   Sound, Vibration, LED prompt Dustproof & Waterproof: IP67
Audio:                        Rear Stereo Speakers, Volume 90db±3db
(Test Distance 10cm)
Shock: 1.2mDropOntoConcrete(6Sides)
Camera:                                     Rear 13 Megapixels AutoFocus; High-Brightness LED Flash; Front 5 Megapixels Fixed Focus Electrostatic Protection: ±15kVAirDischarge,
Flash Light: High-Brightness LED Flash

Communication


External Interface: 20 pin Pogo Extended Port, used for  Fingerprint Moudle; 6 pin Pogo Port ,used to connect Charger Cellular Mode: DualSIMDualStandby
Fingerprint Moudle: TCS1G Reserved SIM1 & SIM2:
Barcode Scanning Support Code System: EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar,  Wi-Fi: IEEE802.11a/b/g/n/ac2.4G&5GDoubleFrequency
UCC/EAN128,RSS, ITF, ITF14, ITF6 , IS SN, ISBN, Standard25, Bluetooth: BT4.1&BLE
AZTEC,Matrix 25,Industrial 25, Plessey, MSI Plessey, Code 11, RFID(High Frequency)
 Code 93,PDF417, QR Code, DataMatrix,Hanxin code ,  Support Agreement:  ISO14443A/B, ISO15693
Maxicode, Micro QR,Micro PDF417, Composite NFC Reading Distance:  0~5cm

GNSS

  Sensors: GravityAccelerationSensor,
GeomagneticSensor,LightandDistanceSensor
Signal Tracking:                                            GPS, BDS,GLONASS
Note:
(1) The working time of the battery is related to the working environment, working temperature and battery life.
(2) The actual size/weight may vary depending on the manufacturing process and measurement method.
